Barometer

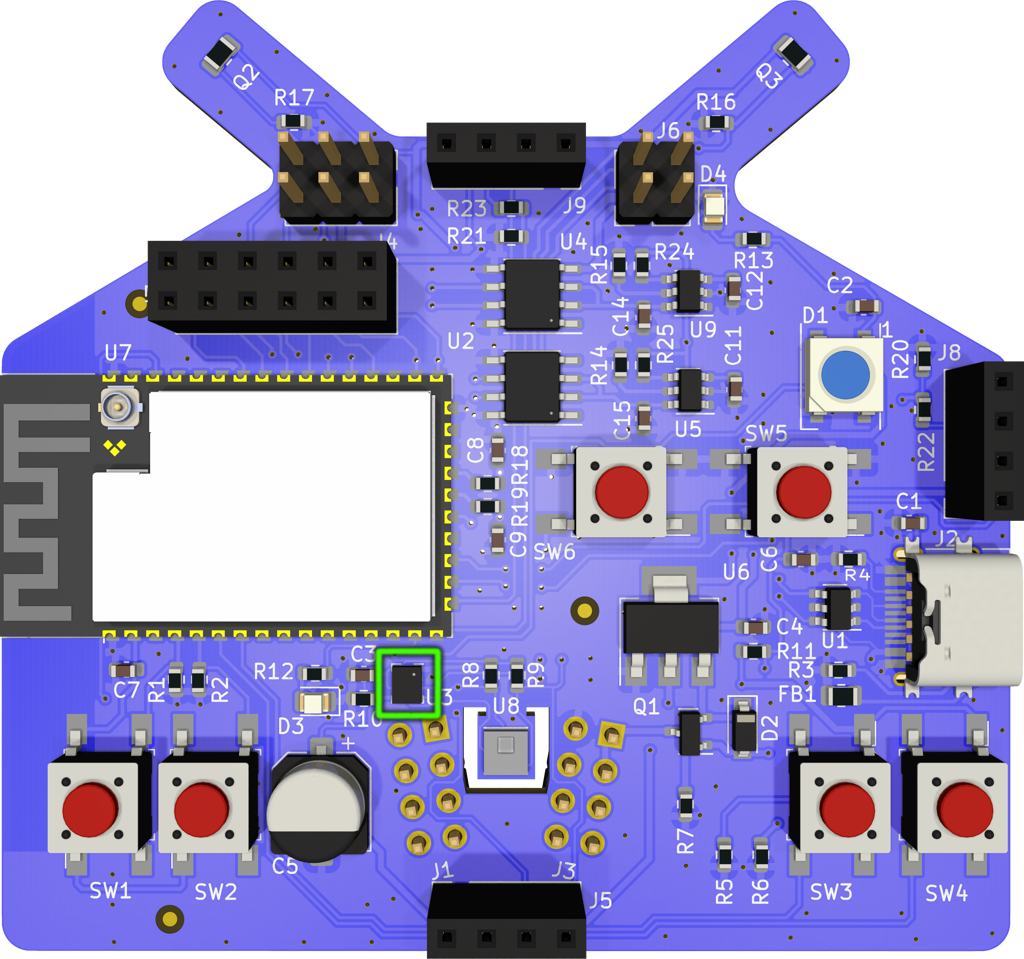

Stemi shield has an included barometer that can measure pressure and temperature.

Library

Stemi barometer library exposes one class representing the included sensor (SPL06-001) on the board.

barometer.py

class Barometer:
    def __init__(i2c):
        ...

    def read():
        ...

    @property
    def pressure():
        ...

    @property
    def temp():
        ...

Explanations

	Returns	Description
__init__	a Barometer instance	creates an instance of the barometer class and sets it up
read	pressure (hPa), temp (°C)	reads current sensor data and returns both pressure and temperature
pressure	pressure (hPa)	reads current sensor data and returns pressure
temp	temp (°C)	reads current sensor data and returns temperature

Example

main.py

from stemi.barometer import Barometer

b = Barometer(i2c)

print(b.pressure)

note

i2c is a global variable that you'll be provided with
